Toshiba D95-LMP Lamp Replacement 23311153

Toshiba D95-LMP Lamp Replacement

DM Price: $119.99

Buy a 2nd lamp for only $109.99!
View more quantity discounts below...

Quantity in Stock:211
Availability: Usually Ships in 24 Hours
Product Code: TOSHIBA_D95_23311153_LAMP

Type

Bare Lamp

Description

Extended Information

Manufacturer	TOSHIBA
Model	D95-LMP
Known As:	D95LMP, 23311153, 23311153A
Lamp Type	Bare (Click Here for Toshiba D95-LMP Lamp with Housing! )
Manual	Click Here for Toshiba D95-LMP Manual
Condition	NEW
Description	This is an 100% genuine Toshiba D95-LMP lamp replacement. This is a special DC lamp and has polarity unlike other AC based lamps. This means that there is a POSITIVE and NEGATIVE terminal on the lamp itself. For this reason we will be shipping this product with it's cable pre-installed onto the lamp for your convenience and to reduce user error.
Warranty	90 Days
Replacement Guide	Toshiba D95-LMP Lamp Replacement Guide

Compatible with at least following models:

46HM15, 46HM95, 46HMX85, 52HM85, 52HM95, 52HMX85, 52HMX95, 56HM195, 56MX195, 62HM15A, 62HM195, 62HM85, 62HM95, 62HMX85, 62HMX95, 62MX195, 72HM195, 72MX195

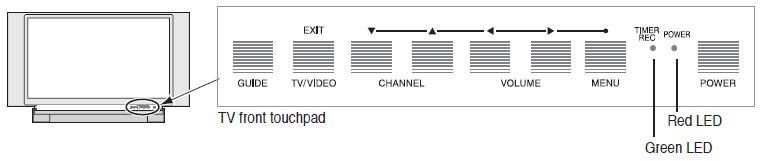

Your Toshiba TV has a green and red LED lights on the front touchpad, these indicate the TV’s status and can help you to ensure your lamp is the problem:

• Red ON (solid) and Green OFF = The TV power cord is plugged in.
• Green ON (solid) and Red OFF = A recording is in progress while the TV is OFF.
• Red ON (solid) and Green ON (solid) = A recording is in progress while the TV is ON.
• Green and/or Red blinking:

1) Green blinks continuously at 3-second intervals. Red blinks continuously at 0.5-second intervals: The lamp unit door is not seated properly. Turn OFF the TV and unplug the power cord. Ensure that the lamp door is installed securely and try again.
2) Green blinks continuously at 0.5-second intervals; Red is ON (solid): The lamp is not working properly. The TV will automatically try to restart itself eight times. Note: If the TV is powered off and then quickly on again when the lamp unit is hot, it may take several minutes for the picture to appear on-screen. This is a property of DLP TV lamp technology and is NOT a sign of malfunction.
3) Green and Red blink continuously at 1-second intervals: The lamp is not working properly after the eighth automatic restart. Turn the TV OFF and then ON again. If the problem persists, replace the lamp unit.
4) Green is OFF; Red blinks at 0.2-second intervals 4 times (repeats): An abnormal temperature increase has occurred. Turn OFF the TV. Check to make sure all slots and openings in the TV cabinet are not covered, blocked, or dusty. Turn ON the TV again.
5) Green is OFF; Red blinks continuously at 0.5-second intervals: Abnormal operation (including cooling fan stop). Turn OFF the TV and unplug the power cord. Plug the power cord in again and turn ON the TV.
6) Green is OFF; Red blinks continuously at 1-second intervals: Abnormal operation of BUS line. Turn OFF the TV and unplug the power cord. Plug the power cord in again and turn ON the TV.
7) Green is OFF; Red blinks at 0.2-second intervals 3 times (repeats): The color wheel has stopped. Turn OFF the TV and unplug the power cord. Plug the power cord in again and turn ON the TV.
